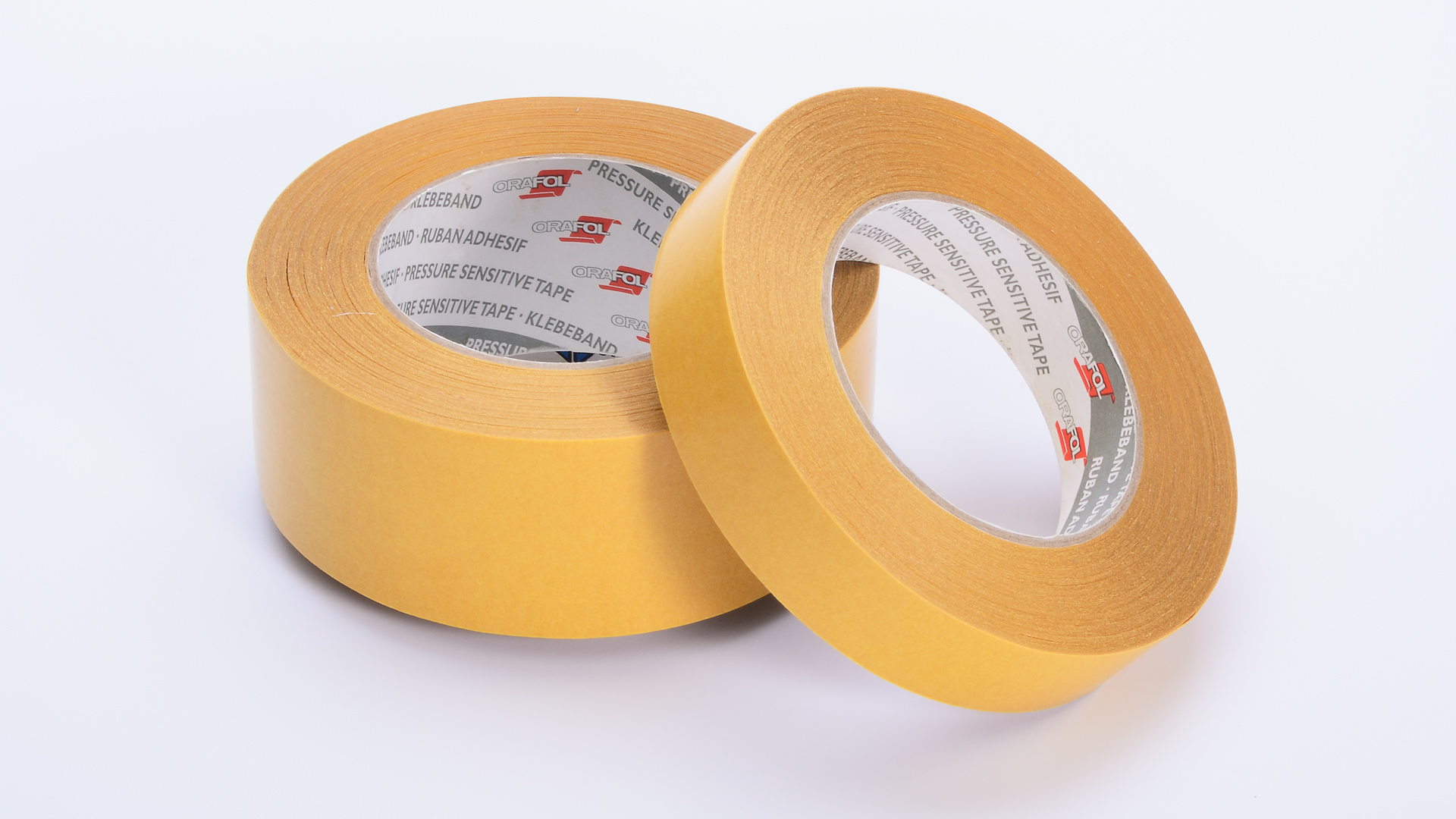

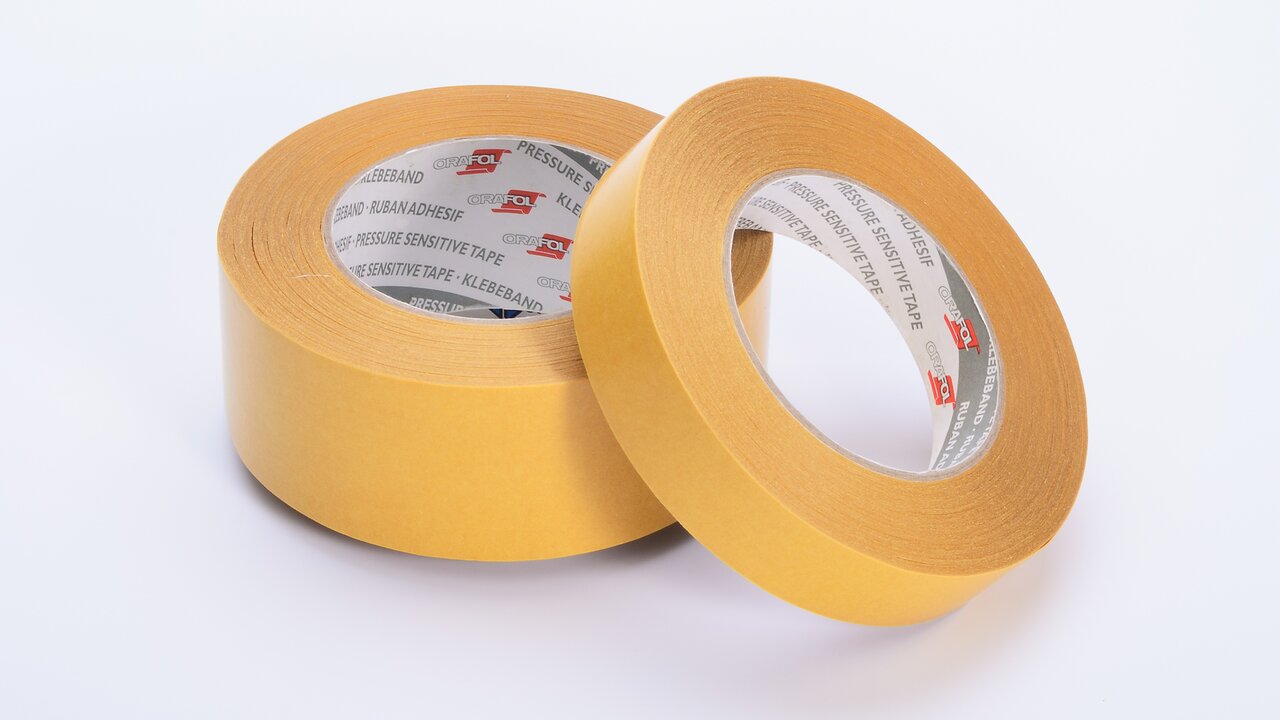

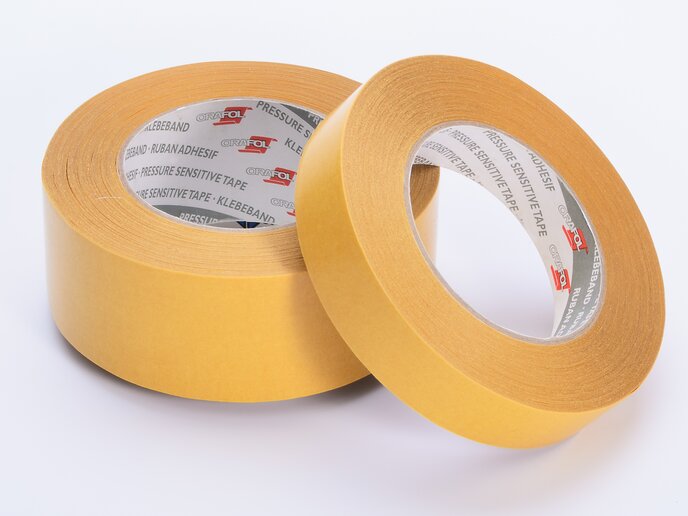

ORABOND® 1336

The double-sided adhesive tape consists of a polyester film carrier which is coated on both sides with modified acrylate adhesives of different adhesive strength. The adhesive on the open adhesive tape side is characterised by high temperature resistance, high tack and moisture resistance. The covered adhesive can be removed again easily and residue-free from many material surfaces.

Product information

Technical properties

Resistance

Shelf Life 2 Year(s) in original packaging, at 20 °C and 50 % relative humidity
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 120 °C 		central European normal climate

Adhesive properties

Adhesive strength (closed side) 1 N/25 mm after 1 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
1.2 N/25 mm after 20 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
1.5 N/25 mm after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
Adhesive (open side) 16 N/25 mm after 1 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
18 N/25 mm after 20 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
20 N/25 mm after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
Maximum shear strength 48 Hour(s) open side, on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
1 Hour(s) open side, on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
500 Hour(s) Covered side, on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
72 Hour(s) Covered side, on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
Processing
Application temperature Minimum temperature 15 °C
Product Construction
Adhesive covered side Modified acrylate
Adhesive open side Modified acrylate
Carrier Polyester
Dimensions
Format Roll
Standard width 1000 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
